StarTech - Startech 5-Port Unmanaged Industrial Ethernet Switch
IP30 - TAA - Switch - unmanaged - 5 x 10/100/1000Base-T - DIN rail mountable, wall-mountable - DC - TAA Compliant
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Startech 5-Port Unmanaged Industrial Ethernet Switch - IP30 - TAA - switch - 5 ports - unmanaged - TAA Compliant |
| Device Type | Switch - 5 ports - unmanaged |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000Base-T |
| MAC Address Table Size | 9K entries |
| Features | WOL, store and forward, full duplex mode, fanless, PXE support, rugged, metal housing, security slot (Kensington security lock compatible), Auto MDIX, LED status indicator |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Power | DC DC 9-60 V |
| Dimensions (WxDxH) | 2.4 in x 3.9 in x 1 in |
| Weight | 7.82 oz |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 5 ports - unmanaged |

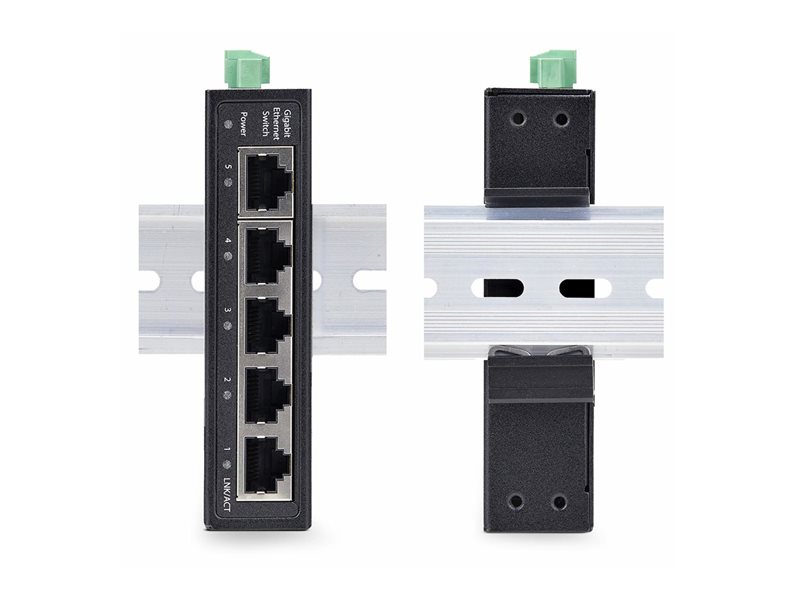

| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000Base-T |
| MAC Address Table Size | 9K entries |
| Features | WOL, store and forward, full duplex mode, fanless, PXE support, rugged, metal housing, security slot (Kensington security lock compatible), Auto MDIX, LED status indicator |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 ¦ 1 x power input 3 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |

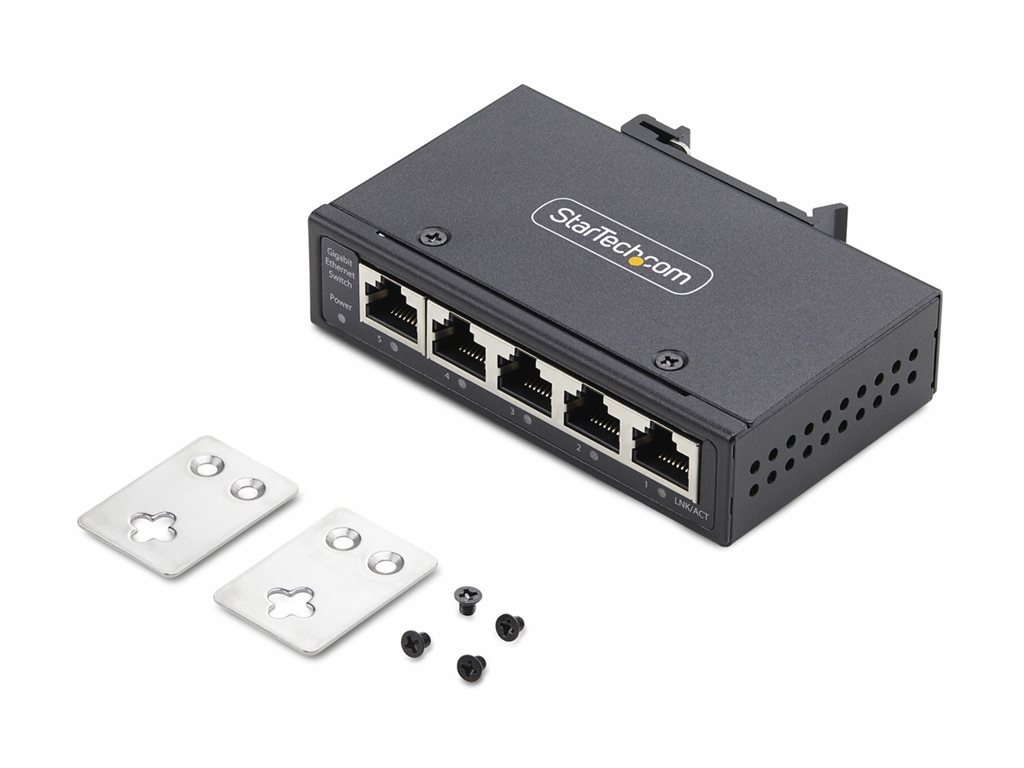

| Included Accessories | DIN-rail mounting kit, 3-pin terminal block, mounting ear kit |
| MTBF | 556,710 hours |
| Compliant Standards | FCC, RoHS, WEEE, IP30, MET |
| TAA Compliant | Yes |
| Power | |
| Voltage Required | DC DC 9-60 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 3.9 in |
| Height | 1 in |
| Weight | 7.82 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.2 in |
| Shipping Depth | 6.3 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 10.36 oz |
