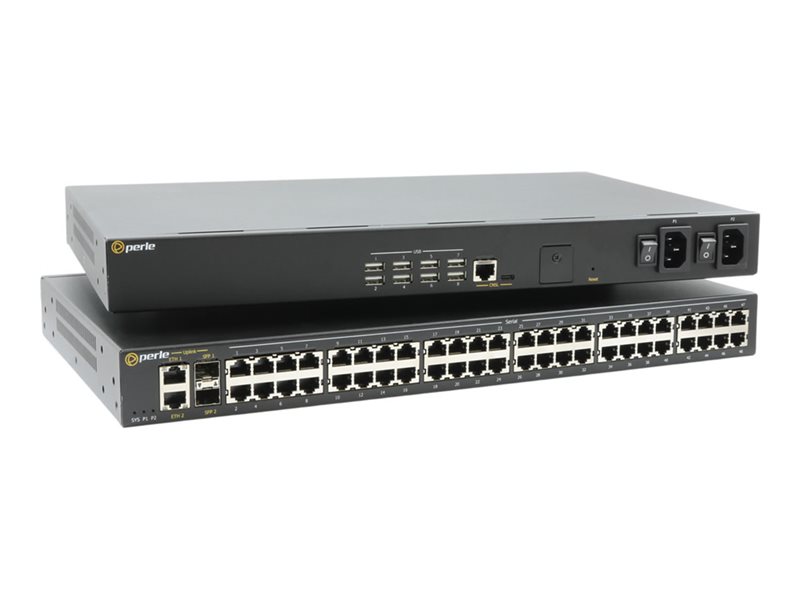

Perle - Perle IOLAN SCR258
Console server - 56 ports - PPP, SNMP, SNMP v3 - 1U - rack-mountable - TAA Compliant
Perle
04035744
0734660357449
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Perle IOLAN SCR258 - console server - TAA Compliant |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Localization | United States |
| Processor | AMD Ryzen R1305G |
| RAM | 8 GB |
| Flash Memory | 256 GB |
| Ports Qty | 56 |
| Data Link Protocol | PPP, SNMP, SNMP v3 |
| Power | AC 100-240 V (47 - 63 Hz) |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 13 in x 10.4 in x 1.7 in |
| Weight | 10.47 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 13 in |
| Depth | 10.4 in |
| Height | 1.7 in |
| Weight | 10.47 lbs |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 48 x RS-232 - RJ-45 ¦ 8 x USB - Type A ¦ 2 x 10 Gigabit Ethernet - SFP ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x RS-232 - RJ-45 ¦ 1 x console - USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 130,964 hours |
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, WEEE, EN 55011, NEBS, REACH, IP20, EN 55032, MIL-STD-810H, CAN/CSA-C22.2 No. 62368-1-14, NDAA, FCC 47 CFR Part 15 Subpart B Class A |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 56 |
| Connectivity Technology | Wired |
| Data Link Protocol | PPP, SNMP, SNMP v3 |
| Network / Transport Protocol | TCP/IP, NTP, SLIP, LPR/LPD, ARP, BOOTP, DHCP, DNS, RARP, DDNS, SFTP, CSLIP, IPv4, IPv6, Telnet, WireGuard, TFTP, OpenVPN, UDP |
| Routing Protocol | RIP-2, VRRPv3 |
| Remote Management Protocol | HTTP, HTTPS, SSH, SMTP, ICMP, Syslog, WINS |
| Features | Firewall protection, ALERT notification, load balancing, SNTP support, VPN failover, DNS proxy, port forwarding, Zero-touch provisioning (ZTP), Trusted Platform Module 2.0 (TPM 2.0), dynamic DNS, IPSec VPN server, passive cooling |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | RADIUS, PAP, CHAP, TACACS+, LDAP, RADSEC |
| Compliant Standards | IEEE 802.1x, IEEE 802.1ab (LLDP) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (47 - 63 Hz) |
| Power Consumption Operational | 16 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | AMD Ryzen R1305G |
| RAM | 8 GB |
| Flash Memory | 256 GB |
